Toyota Diesel 1KZT 1KZ-TE 1KD-FTV 2KD-FTV Water Pump Assembly HiAce Hilux Surf 4Runner Prado Land Cruiser Dyna 16100-69357

Product Overview

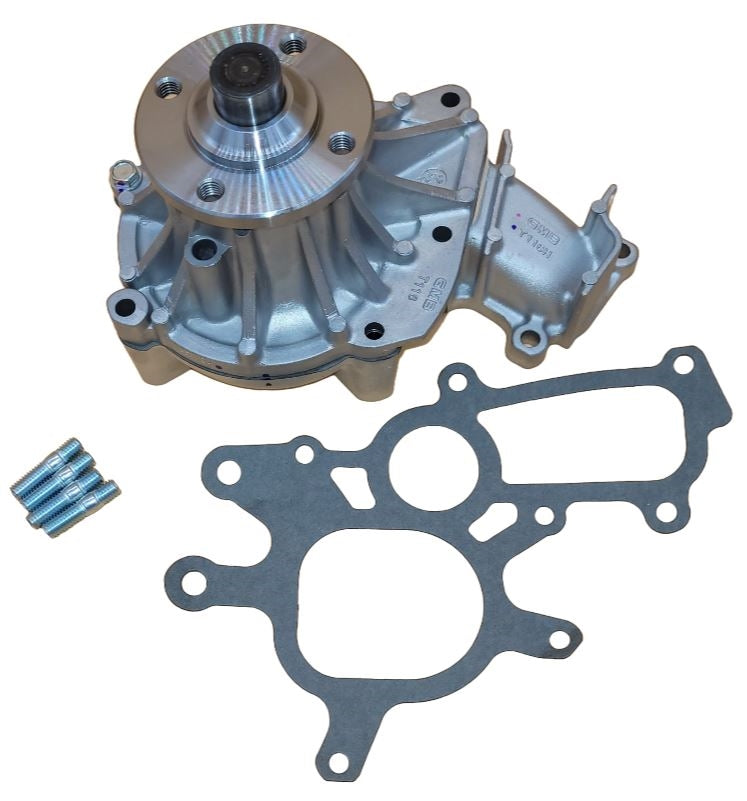

Genuine OEM Toyota Water Pump Assembly compatible with 1990-2020 Toyota Hiace, Hilux, Surf, 4Runner, Prado, Land Cruiser, and Dyna diesel models. This essential cooling system component features a two-piece design with separate cover housing for optimal cooling performance and serviceability. This OEM part delivers reliable coolant circulation and ensures precise temperature regulation for demanding diesel engine applications.

OEM Part Number(s):

• 16100-69357 (current - two-piece design)
• 16100-69356 (superseded - two-piece design)
• 16100-69355 (superseded - two-piece design)
• 16100-09260 (one-piece alternative)



Key Features & Benefits

• Two-Piece Design: Separate water pump and cover housing for enhanced serviceability and compatibility
• Quality Construction: Genuine OEM cast aluminum housing with precision-machined impeller and bearing assembly
• Performance: Maintains optimal coolant flow and pressure for reliable diesel engine cooling
• Complete Assembly: Includes cover housing and mounting gaskets for comprehensive replacement
• Value: OEM reliability at competitive pricing compared to dealership costs



Technical Specifications

Part Type: Engine Water Pump Assembly with Cover Housing
Configuration: Two-piece design (pump + separate cover housing)
Material: Cast aluminum housing with steel impeller and sealed bearing
Engine Compatibility: 1KZT, 1KZ-TE, 1KD-FTV, 2KD-FTV diesel engines

Fitment

Year Range	Toyota Model	Engine Options
1990-2020	4Runner / Hilux Surf	1KZT, 1KZ-TE 3.0L turbo diesel
1993-2020	Dyna / ToyoAce	1KD-FTV, 2KD-FTV diesel (commercial variants)
1995-2004	Grand Hiace / Granvia	1KZ-TE 3.0L turbo diesel
1989-2020	Hiace / Regiusace	1KZ-TE, 1KD-FTV, 2KD-FTV diesel
1990-2005	Hilux	1KZT, 1KZ-TE, 1KD-FTV, 2KD-FTV diesel
1990-2020	Land Cruiser	1KZT, 1KZ-TE diesel (70, 90 series)
1996-2020	Land Cruiser Prado	1KZT, 1KZ-TE, 1KD-FTV diesel
1997-2002	Regius / Touring Hiace	1KZ-TE 3.0L turbo diesel

Important: This is a two-piece water pump assembly. Verify your engine requires the separate cover housing design before ordering. Compatible with timing belt service intervals.

Installation & Maintenance

Installation Difficulty: Advanced
Estimated Install Time: 4-6 hours
Tools Required: Complete socket set, timing belt tools, torque wrench, coolant system pressure tester, gasket scraper
Professional Installation: Strongly recommended due to timing belt removal requirements

Maintenance Tips:

• Replace timing belt, tensioners, and idler bearings during water pump service
• Use only genuine Toyota gaskets and sealing compounds for proper installation
• Flush cooling system completely and refill with Toyota long-life coolant
• Avoid over-tensioning drive belts to prevent premature bearing failure

Frequently Asked Questions

Q: What's the difference between two-piece and one-piece water pumps?
A: Two-piece pumps have a separate cover housing that mounts between the pump and engine block. This design allows for easier servicing and is standard on earlier diesel engines. One-piece pumps have an integral housing cast as part of the pump body.

Q: Can I upgrade from a two-piece to one-piece pump?
A: Yes, one-piece pumps (16100-09260) are compatible with all engine vintages when replacing both the pump and cover housing assembly.

Related Toyota Parts You May Need

• Timing Belt Kit - Essential replacement during water pump service
• Thermostat Assembly - Lower temperature option for enhanced cooling
• Water Pump Gasket Set - Includes all necessary sealing components
• Toyota Long Life Coolant - Genuine coolant for optimal performance



Common Symptoms of Water Pump Failure

• Coolant leaking from weep hole in pump housing
• Engine overheating, especially during heavy loads
• Grinding or whining noise from front of engine
• Visible coolant residue around water pump mounting area
• Water pump pulley play or wobbling



Why Choose OEM Water Pump Assembly

Critical Engine Protection: The water pump is the heart of your diesel engine's cooling system. This genuine Toyota OEM assembly ensures precise coolant circulation and optimal operating temperatures for your valuable diesel engine investment.

The two-piece design provides superior serviceability and allows for proper timing belt service without compromising cooling system integrity. Toyota's rigorous quality standards ensure this water pump assembly delivers the reliability and durability expected from genuine OEM components.

Don't risk catastrophic engine damage from cooling system failure - replace your water pump with this genuine Toyota OEM assembly during scheduled timing belt service for maximum reliability and peace of mind.
